3D Skeletal System: The Shoulder Girdle

Think of how many things you do during the day; you stretch first thing in the morning, lift your coffee cup, wave at people, type, write, text, play Angry Birds—no matter what it is you do, chances are you're using your arms to do them. And you know what's incredible about that? You wouldn't be able to use your arms without the shoulder girdle!

I'm fascinated by the shoulder girdle, to be honest. It's such an interesting structure and presents an even more interesting joint. Let's take a quick look, shall we?

As always, if you own Skeleton Premium 2, feel free to follow along!

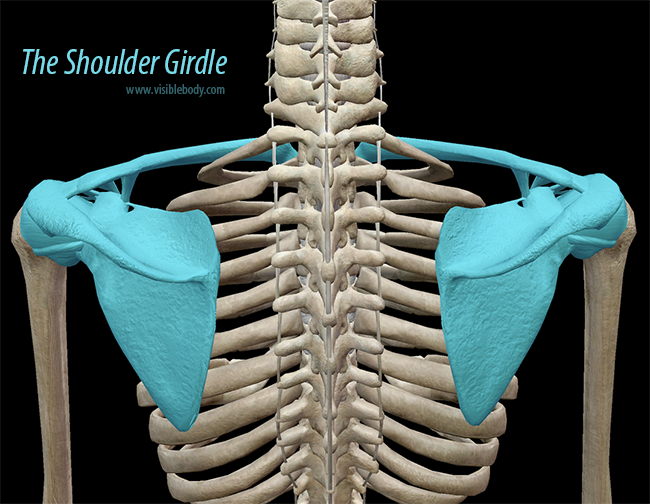

Shoulder girdle axial skeleton


Bones of the Shoulder Girdle

The shoulder girdle is made up of two posterior scapulae and two anterior clavicles. These bones make an incomplete ring around the upper thoracic cage. The medial end of each clavicle articulates with the manubrium and scapulae; each scapula connects to the thoracic cage by muscle only. How crazy is that? The only thing that connects the upper limbs and the scapula to the axial skeleton are the clavicles. That's a pretty big job, wouldn't you say?

The scapulae are flat, triangular bones that serve as the attachment sites of many muscles, including the deltoids. Muscles of the back and thorax connect the scapulae to the thoracic cage.

Here's a quick run-down of the girdle's articulations:



Articulations

Scapula

Humerus, clavicle

Clavicle

Scapula, manubrium, cartilage of the first rib



Manubrium clavicles articulation



Glenoid Cavity and the Shoulder Joint

Hold one of your arms out and rotate it. Your arms have more motility than your legs, despite the fact that the shoulder and hip joints are the same type of joint!

Capsular ligament shoulder

Each scapula has a concave, articular surface called the glenoid cavity (or glenoid fossa), which articulates with the head of the humerus. The cavity is covered with cartilage. The ball-like head of the humerus articulates with the glenoid cavity, creating a ball-and-socket joint that allows the upper limb great motility. A capsular ligament is part of the articular capsule that surrounds a synovial joint (freely moving joint); capsular ligaments reinforce joints and provide stability. The capsular ligament of the shoulder joint provides more motility than the hip joint—in fact, it allows the scapula and the humerus to separate more than 2.5 cm, which means your upper limbs have a fantastic range of motion!

Watch the range of motion of a ball-and-socket joint here:



Landmarks of the Scapula

The scapula is such an interesting bone. I mean, look at it! It's such a cool shape that it's also known as the shoulder blade. You are walking around with two knives permanently strapped to your back. How awesome is that?

Landmarks, or characteristics of the bone, have different functions: muscle attachment sites, bone and ligament articulation sites, passage for nerves and vessels, and more. In the image, all bone landmarks are highlighted in different colors (a nifty tool in Skeleton Premium 2).

scapula bone landmarks acromion scapular spine coracoid

For example, the acromion and the coracoid process (in light pinkish purple) are the two major projections of the scapula. The acromion is an oblong process that hangs over the glenoid cavity, while the coracoid process is a thick, curved process that runs almost parallel to the acromion. They are connected by the coracoacromial ligament. This ligament supports proper movement of the joint by arching over the superior portion of the shoulder, protecting it.

The scapular spine (in pale orange-red) is a prominent plate of bone that serves as the attachment site for portions of the trapezius and the deltoid. At the distal end of the spine is the acromion.



Want to see more?

All the images and most of the content from this blog are from Skeleton Premium, an app for your PC, Mac, iPad/iPhone. Sign up for our newsletter and get information about sales, product upgrades, free preview versions of our apps, and free e-books (like this one on the sphenoid).



Related Posts:

- 3D Skeletal System: The Pelvic Girdle

- 3D Skeletal System: Compact Bone, Spongy Bone, and Osteons -- Oh My!



Sources:

- Skeleton Premium 2
- Gray's Anatomy (The Acromioclavicular Articulation)
